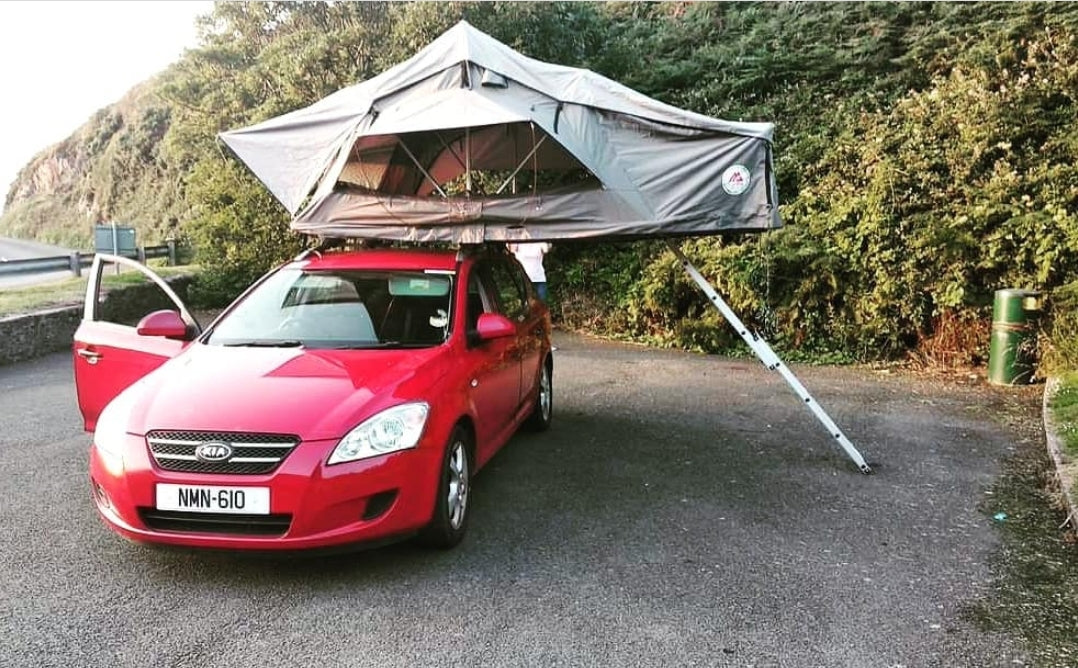

Will a Tuff-Trek Roof Tent Fit My Vehicle?
We’re often asked one simple but important question:
“Will a Tuff-Trek roof tent fit my vehicle?”
The short answer: Yes — in most cases.
Tuff-Trek roof tents are designed to be compatible with the vast majority of cars, SUVs, vans and 4×4s. That said, there are a few key things to understand before fitting a roof tent, and getting these right will ensure a safe, secure, and confidence-inspiring setup.
Below is a clear, practical guide to help you choose the right roof tent and mounting solution for your vehicle.
Roof Bars, Cross Bars or a Roof Rack – What Do You Really Need?
To fit a roof tent, you’ll need either roof bars (cross bars running left to right) or a roof rack.
In around 99% of cases, a full roof rack is not required, especially for soft-top roof tents. A good-quality set of roof bars is usually more than sufficient.
If you’re using roof bars, make sure they:
-
Run left to right across the roof
-
Are spaced approximately 80–120 cm apart
-
Have a suitable dynamic load rating
Recommended dynamic load ratings
-
75 kg minimum → 1.4 m soft-top tents
-
85 kg minimum → 1.65 m & 1.8 m tents
-
100 kg minimum → 2.2 m tents
📏 Important measurement:
The centre-to-centre distance between Tuff-Trek’s mounting rails is 81 cm.
Ensure your roof bar foot packs leave enough clearance for the fixing plates and bolts to fit correctly.
Common Types of Vehicle Roof Systems
Most vehicles fall into one of the following roof-bar mounting categories:
1. Raised Side Rails
-
Rails run front to back
-
Roof bars clamp securely onto them
-
Common on SUVs and estates
2. Fixed Mounting Points
-
Often hidden under small flaps
-
Bars bolt directly into factory points
3. Rain Gutters
-
Older but extremely strong system
-
Ideal for heavy loads and overland use
4. Naked / Normal Roofs
-
Bars clamp around the door aperture
-
Unfortunately these ARE NOT suitable or recommened for Roof Tents!!!
5. Factory Roof Racks
-
Always check the stated load rating
-
Some are cosmetic rather than structural
💡 Tip: Many UK retailers (such as Halfords) allow you to enter your vehicle registration to find compatible roof bars quickly.
Vehicle Roof Load Limits Explained (Without the Confusion)
This is where many customers understandably worry — but there’s no need to.
You’ll often see figures like 75 kg maximum roof load, which seems far lower than the combined weight of a roof tent and people inside it.
Don’t panic.
The key difference:
-
Dynamic load = vehicle in motion
-
Static load = vehicle stationary
Manufacturers quote dynamic load ratings because driving involves braking, cornering, and acceleration.
When parked, however, most vehicles can safely support far more weight than the dynamic figure suggests.
✅ In real-world terms:
When stationary, the vast majority of vehicles can comfortably support a Tuff-Trek roof tent plus 2–3 occupants, provided suitable roof bars or a roof rack are used.
How Does a Tuff-Trek Roof Tent Attach to Roof Bars or a Rack?
Every Tuff-Trek roof tent is supplied with:
-
A full installation guide
-
A comprehensive, heavy-duty fixing kit

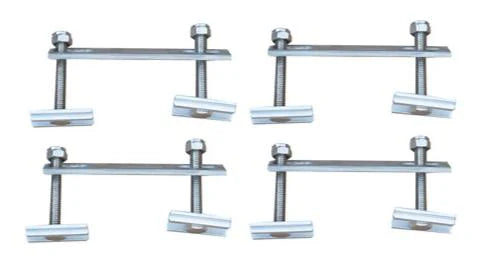

The mounting system includes:
-
Heavy-duty aluminium mounting tracks that fix to the base of your roof tent
-
Adjustable aluminium sliders
-
Drop bolts
-
Stainless-steel locking plates
The sliders sit inside the rails and can be positioned to match your roof-bar spacing.
The drop bolts pass around the bars and are secured with locking plates — similar to an adjustable U-bolt system.
Once tightened, the tent is rock-solid and securely mounted.
🔧 Reminder:
The 81 cm rail spacing means you must allow room around roof-bar foot packs for the fixings to sit correctly.
Final Thoughts – Simple, Practical, Built to Explore
✔ Most vehicles can carry a Tuff-Trek roof tent
✔ Roof bars are usually sufficient for soft-top tents
✔ Dynamic load limits apply only while driving
✔ Static loads are far higher when parked
✔ Every tent includes a complete fitting kit
If you’re ever unsure, our team is always happy to confirm compatibility before you buy — just call on 01825 840 786 or email HERE to ask.
Simple. Practical. Built to explore.
