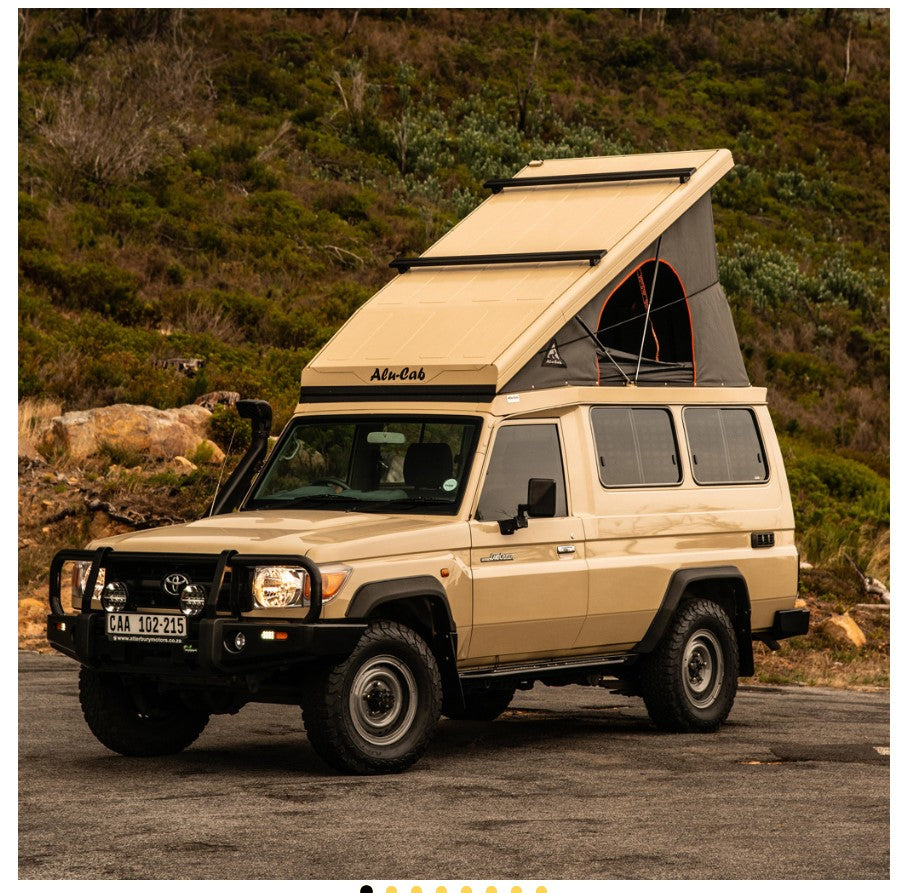

Alu-Cab Hercules G2 Roof Conversion – Toyota Land Cruiser 75/78 Beige

Alu-Cab Hercules G2 Roof Conversion

Transform your Toyota Land Cruiser 75 or 78 Series Troopy into a fully integrated two-person overland camper with the Alu-Cab Hercules G2 Roof Conversion.

Designed specifically around the iconic Troopy, the Hercules replaces the vehicle's original roof with a lightweight aluminium pop-top system, creating a spacious elevated sleeping area while also providing valuable standing room inside the vehicle.

The bed is accessed from inside the Land Cruiser, meaning there's no need to climb an external ladder. When it's time to move on, the Hercules closes down into a slim, streamlined profile – and you can even leave your bedding inside.

Built for serious touring and expedition use, the G2 incorporates integrated lighting and charging, roof cargo tracks, insulation and heavy-duty waterproof canvas.

Features

• Designed for Toyota Land Cruiser 75 & 78 Series Troopy
• Integrated two-person sleeping area
• Internal access from inside the vehicle
• Creates standing room inside the Land Cruiser
• Bedding can remain inside when the roof is closed
• Lightweight aluminium construction
• 400gsm UV-resistant, waterproof rip-block canvas
• Insulated roof with automotive lining and high-density closed-cell foam
• Integrated interior lighting
• USB and USB-C charging ports
• Internal storage bags
• Integrated MOLLE mounting plate
• Integrated roof cargo tracks
• Solar connection for straightforward solar installation
• Integrated E-marked high-level brake light
• Heavy-duty secure closing latches
• Available in Black, White or Beige
• Designed for demanding overland and expedition travel

What's Included?

• Alu-Cab Hercules G2 Roof Conversion
• Integrated lifting roof and sleeping platform
• 70mm mattress
• 400gsm waterproof canvas tent section
• Integrated internal lighting
• USB and USB-C charging
• Internal storage bags
• Integrated MOLLE mounting plate
• Roof cargo tracks
• Solar connection
• Integrated high-level brake light
• Vehicle-specific installation components

Dimensions & Specifications

• Exterior Dimensions: 2864 × 1433 × 232mm (L × W × H)
• Additional Vehicle Height: Approx. 140mm above the original roof line
• Mattress: 2400 × 1160 × 70mm
• Weight: Approx. 116kg + effective weight
• Sleeping Capacity: 2 people
• Static Roof Load: 200kg
• Dynamic Roof Load: 150kg
• Roof Load with Roof Open: 50kg
• Construction: Aluminium extrusions with laser-cut and formed aluminium components
• Canvas: 400gsm UV-resistant, rip-block, double-layer waterproof canvas
• Colours: Black / White / Beige

Installation

• Hercules is a permanent vehicle roof conversion and requires the original Land Cruiser roof to be cut and removed as part of the installation.
• Professional installation is therefore strongly recommended and is available from TUFFTREK® in East Sussex.
• Please contact us with your Land Cruiser model and year before ordering so we can confirm compatibility and installation requirements.

FAQs

• What vehicles does the Hercules G2 fit?
  It is designed for the Toyota Land Cruiser 75 and 78 Series.
• How many people can sleep in the Hercules G2?
  The sleeping area is designed for 2 people.
• Can you stand inside the vehicle?
  Yes. The lifting roof creates additional headroom and allows you to stand inside when raised.
• What size is the mattress?
  The Hercules G2 includes a 70mm thick mattress designed for the two-person sleeping area.
• Is the tent waterproof?
  Yes. The multi-layer tent fabric incorporates a polyurethane membrane and is designed to be waterproof.
• Does it have mosquito nets?
  Yes. Three openings incorporate mosquito nets for ventilation while helping keep insects outside.
• Does it have lighting?
  Yes. Integrated LED lighting and LED reading lights are included.
• How does the roof open?
  Gas pressure springs allow the lifting roof to be opened in seconds.
• Does installation require cutting the vehicle roof?
  Yes. The original Land Cruiser roof must be cut to install the Hercules conversion.
• Can I install it myself?
  Professional installation is recommended due to the structural modification, roof cutting and sealing required.
• What colours are available?
  The Hercules G2 is available in Black, White and Sand Beige.
