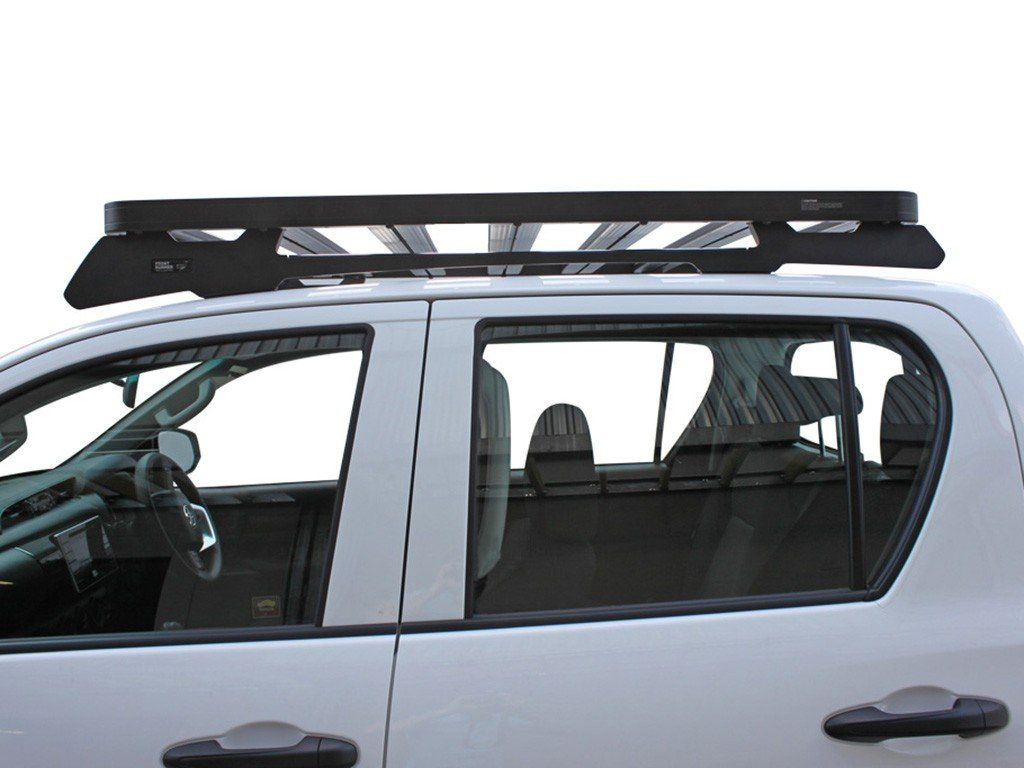

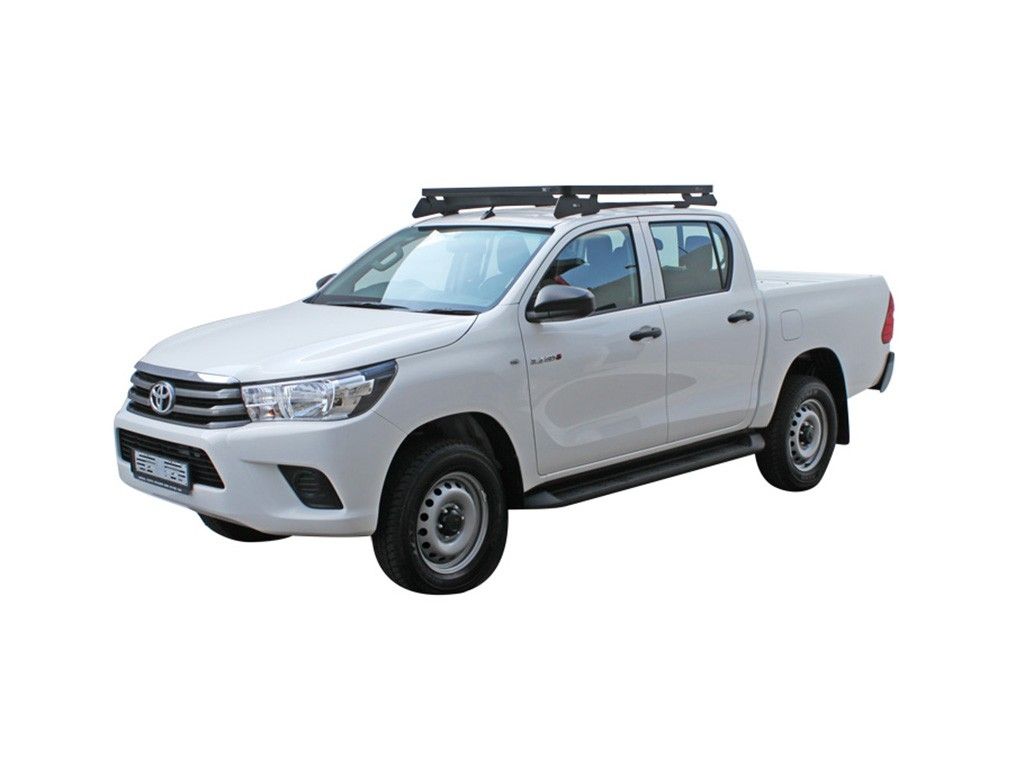

Toyota Hilux REVO (2016-CURRENT) Slimline II Roof Rack KRTH011T

This 1358mm/53.5" long full-size Slimline II cargo roof rack kit contains the Slimline II Tray, Wind Deflector and 2 Foot Rails to mount the Slimline II Tray to your Toyota Hilux Revo Double Cab.

Drilling into the vehicles roof is required to insert mounting hardware, a template is provided for hole placement *

All Front Runner Racks are backed by a Limited Lifetime Warranty*

KRTH011T - Toyota Hilux Revo DC (2016-Current) Slimline II Roof Rack Kit - by Front Runner

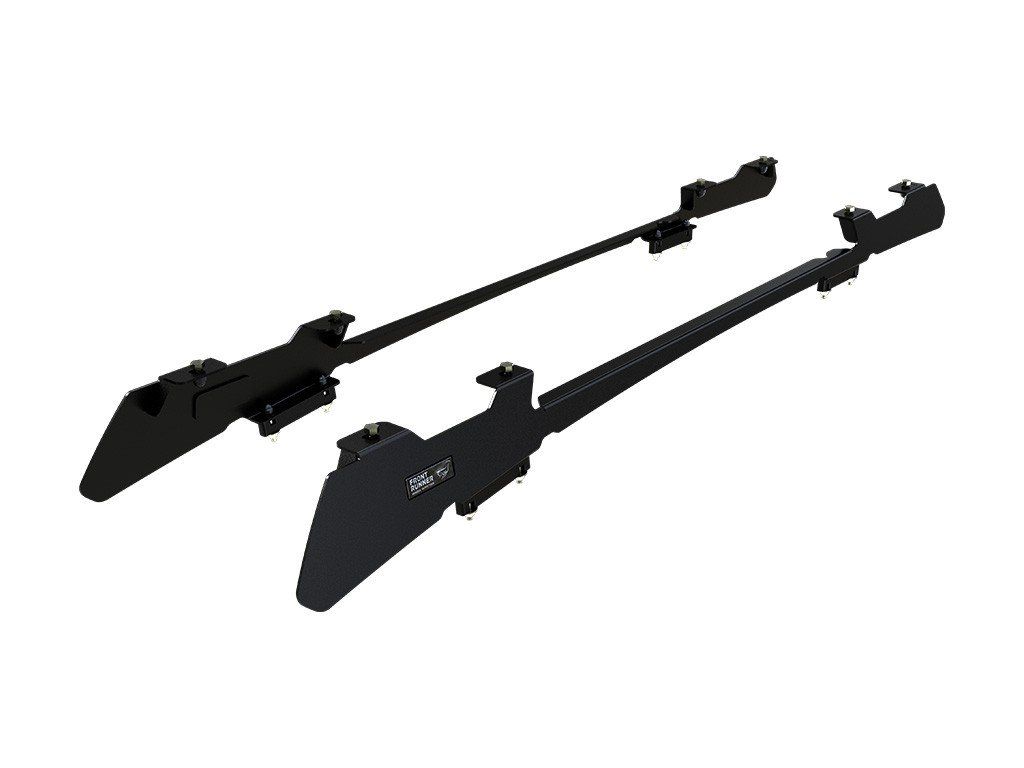

• 1 x FATH002 - Toyota Hilux Revo DC (2016-Current) Foot Rails - by Front Runner

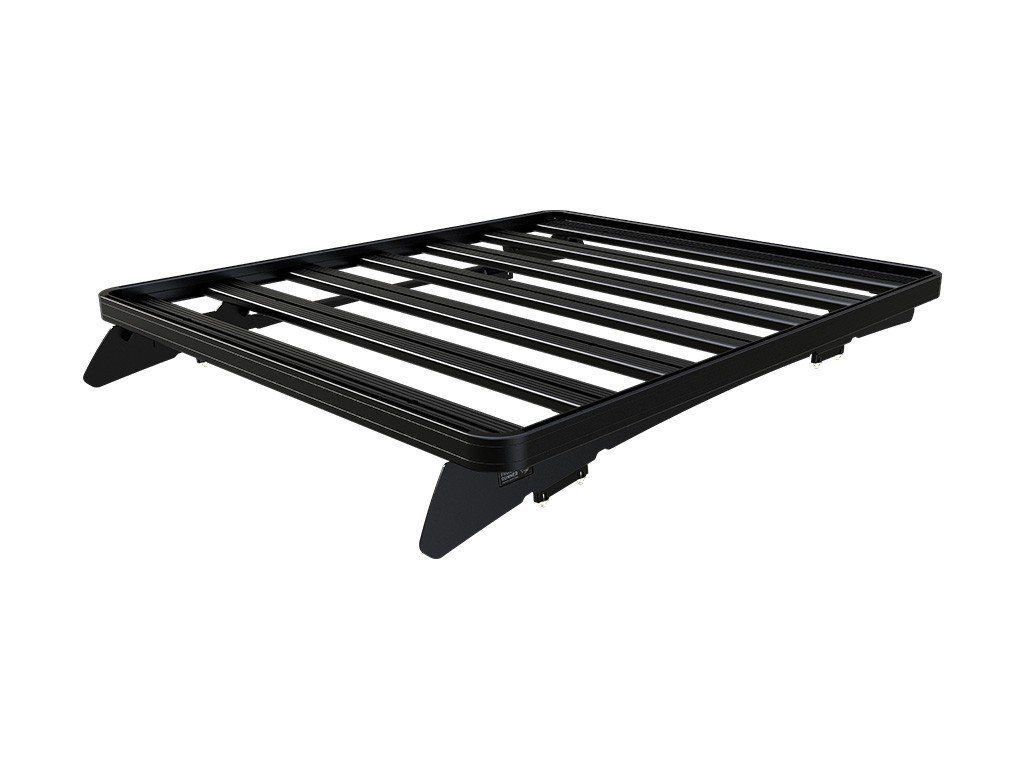

• 1 x RRSTA07 - Slimline II Tray - 1165mm(W) X 1358mm(L) - by Front Runner

 MATERIAL USED:

• Black epoxy powder-coated T6 aluminium
• High strength steel
• Approximate Installed Weight 25kg (56lbs)
• t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts

HEIGHTS:

To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot or Grab-on Foot listed above.

• If your Slimline II Roof Rack kit uses Legs, add height of Slimline II Tray (50mm/ 2") to height of Legs to determine height of the rack from your vehicle’s rain gutters
• If your Slimline II Roof Rack kit uses Foot Rails, add height of Slimline II Tray (50mm/ 2") to height of Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof
